Product Details
- Size: 0.2
- Place of Origin: China
- Brand Name: ELK
- Model Number: 150429-373
- Weight: 500.000 kg
| Gearbox | cast iron(FC25) material, high tension, high precision. |
| Gear | Ni-Cr-Mo alloy steel(SNCM220&SCM415) with heat treatment of vacuum carbonitriding. |
| Shaft | alignment and grinding, high accurate, high abrasion and strike resistance, up 5 times safety factor,long service life. |

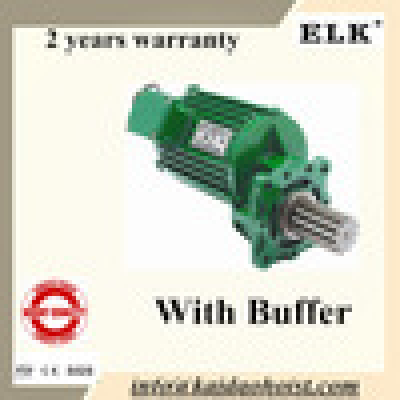

| Buffer | adopt soft starting and flywheel, make start and brake stable, smooth and not shake, and ensure motor high inertia movement. |
| Motor | easy heat dissipation, good high voltage resistance, low noise, high performance, high torque, low current, small size, strong output power, high operation frequency. |
| Electromagnetic brake | Strong braking force, bolt control braking force directly, braking pad high wear resistance, ensures it strong stability, long service life. |
- Size: 0.2
- Place of Origin: China
- Brand Name: ELK
- Model Number: 150429-373
- Weight: 500.000 kg
| KD-100 4P | M3 | Teeth | 13T | 14T | 15T | 16T | Reduction ratio:7.7:1 Output shaft:189 Rotate | ||
| Speed | 19m/min | 21m/min | 23m/min | 24.4m/mim | |||||
| M3.5 | Teeth | 10T | 11T | 12T | 13T | 14T | 15T | ||
| Speed | 17.9m/min | 19.6m/min | 21.5m/min | 23.8m/min | 25.7m/min | 27.5m/min | |||
| M4 | Teeth | 9T | 10T | 11T | 12T | 13T | |||
| Speed | 18.8m/min | 21m/min | 23m/min | 25.1m/min | 27.2m/min | ||||
| M5 | Teeth | 7T | 8T | 9T | 10T | 11T | 12T | ||
| Speed | 18.8m/min | 21.5m/min | 24.2m/min | 26.8m/min | 29.5m/min | 32.2m/min |
